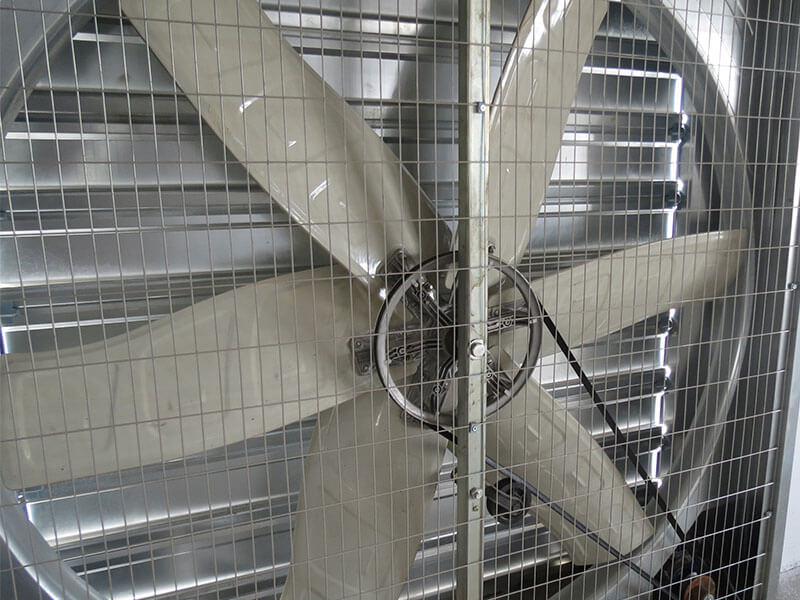

Ventilation Fan

  • Brand: HengYin
  • Type: pig farm equipment
  • Feature: your pigs deserve the best
  • Material: various
  • Equipment : customized
  • Delivery Detail: Shipped in 7 days after payment

  • Product Description
  • Technical Data

Ventilation Fan

Product advantage:

1.advanced design: reasonable angle of blade without deformation and break makes sure maximum air flow.High-precision microcomputer aided manufacturing system allows the fan to achieve its best performance.
2.High quality materials FRP used make sure highly corrosion-resistant of fans.
3.Good performance: low noise, large volume airflow, lower power consumption, effective cooling performance, maintenance-free.

Type Diameter of fan blade(mm) Amout of air(m²) Total Pressure(Pa) Noise Db Input power(W) Rated voltage(W) High(mm) Width(MM) Thickness(mm)
HY-80 710 14750 55 ≤56 550 380 800 800 400
HY-90 900 23800 60 ≤56 550 380 1000 1000 400
HY-100 1000 32500 70 ≤56 750 380 1100 1100 400
HY-125 1250 44000 56 ≤56 1100 380 1380 1380 400
HY-140 1400 55800 60 ≤56 1500 380 1530 1530 400
